Alkyd Resin Plant Specification

For the 5000L resin equipment can produce 10 tons per batch.It mainly includes 5000L reactor and 10000L dilute kettle.It has several diffrent heating ways,coal,nature gas,diesel oil,or electric.

Below are the details for 10 tons per day equipment with electric heating way:

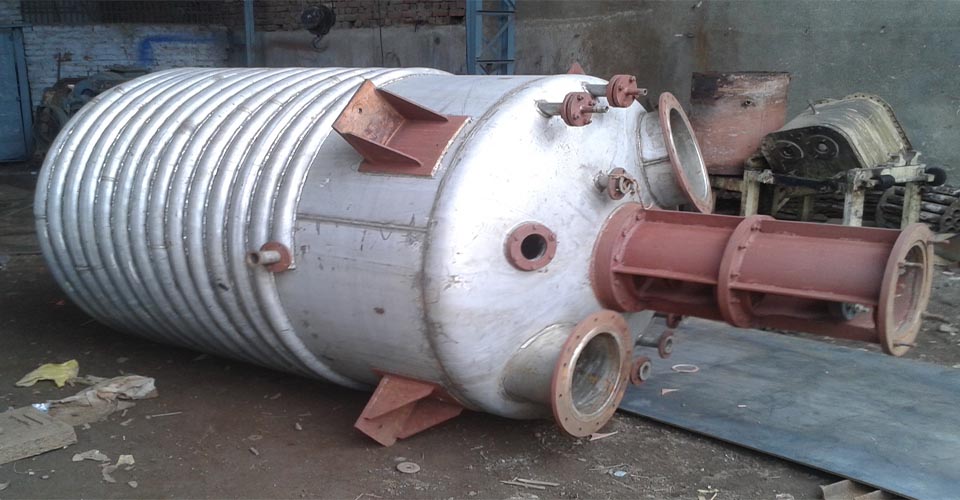

5000L Resin reactor configuration:

  • 1.Inner material and thickness: 304 stainless steel plate, 10mm
  • 2.outer material and thickness: carbon steel,8mm ,Oar type mixer
  • 3.electric motor: 11kw,4# cycloidal reducer 85 R.P.M..
  • 4.mechanical seal
  • 5. electric heater: 5kw*18 piece.
  • 6.automatic temperature control, with power plate
  • 7.vertical condenser: 5 square meter
  • 8. horizontal condenser: 20 square meter
  • 9.separation column diameter:280mm height :1000mm,one elbow
  • 10. §50 internal dish tubeŚ8 laps(304 stainless steel)
  • 11.Oil-water separator: 304 stainless 300L
  • 12.carbon steel Q235 buffer tank 500L

10000L dilute kettle configuration

  • 1.inner material and thickness: 304 stainless steel,10mm
  • 2.outer material and thickness: carbon steel,8mm ,Oar type mixer
  • 3. .electric motor: 15kw, 5# cycloidal reducer 85 R.P.M
  • 4.mechanical seal
