Limpet coil reaction Vessel
  • Category :Chemical and Pharmaceutical
  • Manufacturer:Abster Equipment
  • Date :15th Aug, 2019
  • Link :www.resinplants.net
  • Rating :

Limpet Coil Vessel Specification

Limpet Coil Reaction Vessels:

Limpet Coil Reaction Vessel is one of the most important equipment of any chemical, food, drugs, dyes and allied industries. There are various types of reaction vessel viz jacketed, Limpet coil in Body flange or Welded Types, Top open type, Top dish type etc.

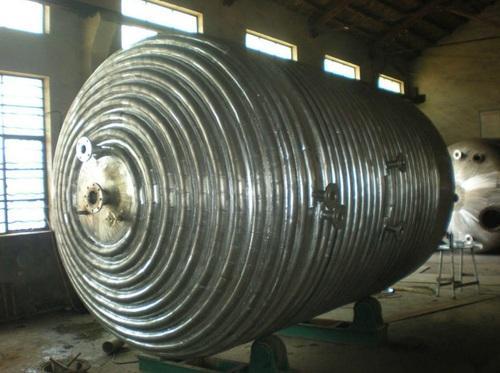

The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. LimpetCoil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure.

Limpet Coiled Vessel with Closed Rigid Container is made using graded carbon steel and stainless steel alloy to ensure fine finish and long lasting usage. The Limpet Vessel is equipped with closed rigid container for effectively holding gases and liquids at different pressure. The Limpeted Vessel is available in a sturdy construction that is easy to operate. Limpeted Vessel with Closed Rigid Container comes in varied shapes and sizes to cater to industrial requirement.
PROCESS REACTION VESSEL.

Our Multipurpose process reaction vessel, industrial reaction vessel and plants for manufacture of Bulk Drugs and APIs are designed keeping into consideration the various Process Parameters, also including clean-ability & product impurity profile.

  • Limpet coil Reaction Vessel

limpet coil reactor
  • Limpet coil Stainless Steel Reaction Vessel.
  • Limpet Vessel manufacturer.
  • Double limpet coil vessel.

Advantages of Limpet Type Reactors

  • Available in the range of 100 Liters to 50,000 Liters

    Offered in Stainless Steel 316, 304 or Carbon Steel material, CS with PFA-PTFE-HALAR Coating

  • Coils are half piped welded on outer surface of the main vessel for uniform circulation of heating or cooling media like steam, oil, water etc. and also provides extra strength to the main vessel

  • Adheres to ASME and other standards with special attention to Argon and Arc welding procedures

  • Save Energy using two part Jacket design for smaller batch

    GMP range of equipment's available for Pharmaceutical industry. With mirror finish from 220 grit to 440 grit, smooth welding, flush grinding and Insulation with mirror finished S.S cladding

    Energy efficient direct drive design for the agitator, with VFD option to vary the RPM of the drive

  • Agitator design to suit the reactants viscosity and density
  • Vessel design with form cutter for the process which generates forms

    Save time and money with our Value added products and services like Process

  • Automation, valves and fittings

    Manufacturing facilities approved by the renowned consultants and Third party inspection TPI agencies

Type Of Blades Agitator

  • Anchor Type Stirrer
  • Propillker type Stirrer.
  • Pitched Blade Stirrer.
  • Ribbon Type Stirrer fro Reaction Vessel.

Looking for a quality and affordable Limpet Coil Reaction Vessel?
