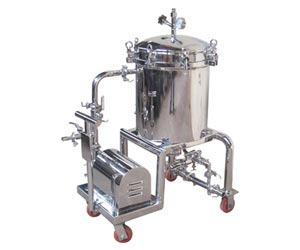

Zero Hold Up Sparkler Filter Press

sparkler filter press      filter press zero hold up
sparkler filter press

Sparkler Filter Press Specification

For Optimum Solutation of : Kneading, Dispersing & Mixing for High Viscous material

We are instrumental in providing our clients a comprehensive range of excellent quality Zero Hold Up Filter Press Machine. Our complete range of filter press is designed with top quality of material in accordance with the market norms. The offered filter press is broadly applauded for its performance & long life & also examined on quality parameters for ensuring its flawless range. Clientele can purchase the whole range of filter press at pocket friendly rates.

range of Filter Press is used for wide range of applications by several industries like Pharma, bulk drugs, distilleries, beverages & other industries.

There are various combinations available in size & number of plates to give different filtration area 8 cake holding capacities to meet your process requirements. The work man ship, finish & make of components ensure best quality to meet the industries requirements.

HORIZONTAL PLATE TYPE FILTER PRESS
Operation :
The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates.As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance.

Features :
  • Horizontal Plate Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product.
  • Filter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and Shallow plate for small percentage of cake holding capacity.
  • The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality.
  • The Filtration area and cake holding capacity can be increased or decreased according to requirement.

Technical Specification :
Types Diameter of Plate No. of Plates Filtering Area M2

Cake Holding Capacity Ltrs.

 Capacity Ltr / Hr
SFP86 8" 6 0.198 4.50 400
SFP88 8" 8 0.254  5.78 500
SFP148 14" 8 0.756  27.00 1500
SFP1410 14" 10 0.924 35.00 1800
SFP188 18" D 8 1.270  51.00 2500
SFP1815 18" S 15 2.270  44.00 4500
SFP1812 18" D 12 1.840 78.00 3700
SFP1823 18" S 23 3.400 65.00 6800
SFP2412 24" D 12 3.430 148.00 6700
SFP2423 24" S 23 6.336 120.00 12600

sparkler filter press

ZERO HOLD UP FILTER PRESS



The Cartridge assembly consists of plates, perforated screens, spacers and fitter media. Interlocking spacers internally form single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquids spreads out equally on each plate fitted with filter media. Solids remain on filter media and clear. filtrate flows through precisely made holes on sides of plates and collects in the shell, which then comes out through the outlet. In this process, solids are evenly distributed on each plate. The cake is then cleaned from the filter material and used again for filtration process.
  • Single pass filtration with no solid bypass
  • Full batch recovery, no separate scavenging system needed.
  • Proper sealing which allows the filtration of volatile, toxic and inflammable products.
  • Plate pack arrangement ensures : Any type of filtering media singularly or in combination, can be used to achieve required micron efficiency. Easy removal and cleaning of the Cartridge Assembly.
  • Closed System ensures : Filtration of toxic, hazardous, explosive materials. Efficiently cleaned and sterilized.
  • Central feeding ensures : No solid inside the vessel, complete recovery of liquids. Cake solids can be maximum dried with N2 Complete cake retains over the plate. Uniform filter-aid bed can be formed. Reduces the cost of expensive solvents.

The values of "Flow-Rates" mentioned in technical specifications have been estimated for the following operating parameters :
  • Fluid : Water
  • Insoluble : Carbon
  • Filter media : Non-woven polypropylene cloth of 418 grade.
  • Carbon loading : 5 Kg/m2 filtration area.
